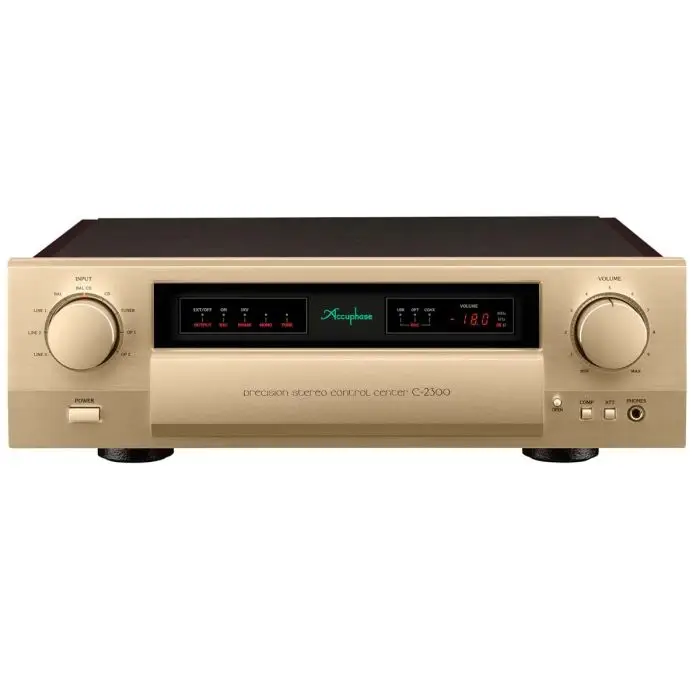

Accuphase C-2300

Balanced AAVA preamplifier combining sound quality and functionality
For more than half a century, Accuphase has continued its relentless pursuit of creating the ideal volume control circuitry. The C-2300 preamplifier utilizes Balanced AAVA – the successor of the AAVA system – to control volume without sacrificing vibrancy in the source sound. A newly added 4-band tone control enables fine adjustments to sound tone. Experience the sonic depth from the combined sound quality and superior features the C-2300 provides.

Advanced features
Balanced AAVA volume control
Highly reliable logic-controlled signal switching relays
Separate power supplies for the left and right channels
Volume sensor design achieves a quiet and smooth operation feel
Abundant inputs/outputs (5 line level inputs, 2 line level outputs, 2 balanced inputs, 1 balanced output)
Line level and balanced EXT PRE inputs for connection of an external preamplifier
Output selection (ALL / LINE / BAL / OFF)
Recorder selector (OFF / ON / PLAY)
Switchable overall gain (12 dB / 18 dB / 24 dB)
Left/right balance control with Balanced AAVA
MC/MM switching (when AD-60 / AD-50 / AD-30 / AD-20 is installed)
Subsonic filter ON/OFF switching (when AD-60 is installed)
MC load input impedance switching (when AD-60 is installed, 30 / 100 / 200 / 300 ohms)
DAC input selector (when DAC-60 / DAC-50 / DAC-40 is installed)
Individual phase setting for each input
Stereo signal can be switched to monophonic operation
Display mode selector
4-band tone control (40 Hz / 125 Hz, 500 Hz, 2 kHz, 8 kHz / 20 kHz)
Discretely configured, high-quality headphone amplifier with parallel push/pull output stages
High-carbon cast iron insulators for superior vibration damping
Loudness compensator to adjust audible sonic balance
Volume attenuator that can instantly reduce sound as low as –20 dB
